Water Transfer Pump
Implements
Sprayer Rigs

High Pressure Water Pump

2 types (scroll down to see all)


Cadoppi Brand: Manufactured by the Cadoppi company of Italy, this high-performance cast-iron centrifugal pump is designed for applications where high delivery pressure and/or high head are required. This unit has 2” inlet & outlet ports, will develop pressures up to 80 PSI, and delivers up to 198 GPM. Has a total head of 220 feet (total suction lift is 26 feet, and it will push water as much as 195 feet above the pump, so 220 feet of head total). Excellent for high-pressure irrigation systems such as sprinklers, etc.

As is typical of most high-pressure centrifugal pumps, this unit is NOT “self-priming”…the pump must be primed with each use. We supply a combination foot-valve/strainer to be installed at the base of your suction hose…Priming becomes much easier with this installed, as it is a one-way valve that keeps the water from running back out of the hose every time the pump is shut off.

Pump housing is cast iron, impeller is precision-machined brass. Has a built-in cast iron gearbox which increases tractor PTO speed to the proper speed for the pump. If less volume or pressure is needed for a particular application, you can always run your engine slower…being a “high-pressure” precision-type centrifugal pump, once it picks up the prime and is pumping, you can slow the pump speed down to an engine idle speed, if desired, without the pump losing the prime.

Since this is a close-tolerance high-pressure pump, this is considered a “clean-water” pump, so it will not handle rocks of any size. Therefore, if you are pulling water out of a creek or pond, your foot-valve should have a good filter/screen on it as well (some folks just improvise an adequate filter by folding / wrapping a section of metal window screen around the foot valve, and then securing it to the suction hose with a hose clamp — anything that will pass through a window screen will not hurt the pump)

  • Fits Grillo tractors 8hp and up
  • Fits BCS tractors with a PTO adapter (Additional accessory required to fit BCS 660 or 750)
  • MSRP: $949 $825

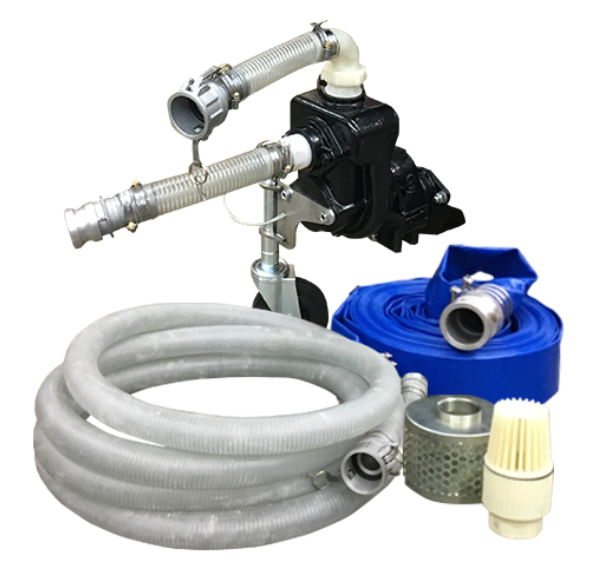

Rovatti Brand: Produced by Rovatti of Italy and imported through BCS America, this high-pressure cast-iron pump DOES have a self-priming feature. It also includes 25 feet of 2” suction hose and 50 feet of 2” discharge hose and a foot-valve & strainer. This pump does not quite have the volume capacity as the Cadoppi pump above, but it is still a good performer at 145 GPM. The total head is about the same (26 feet of suction + about 190 feet of lift = 220 total feet of head) and it will develop about 85 PSI.

Since this is a close-tolerance high-pressure pump, this is considered a “clean-water” pump, so it will not handle rocks of any size. Therefore, if you are pulling water out of a creek or pond, your foot-valve should have a good filter/screen on it as well (some folks just improvise an adequate filter by folding / wrapping a section of metal window screen around the foot valve, and then securing it to the suction hose with a hose clamp — anything that will pass through a window screen will not hurt the pump)

  • Fits BCS tractors 8hp and up
  • Fits Grillo tractors with a PTO adapter (Additional accessory required to fit Grillo G131)
  • MSRP: $1150 Earth Tools Regular Sale price: $1093 SEASONAL PROMOTIONAL PRICE UNTIL DECEMBER 31 2019: $1064
