Aldo Biagioli Bedshaper

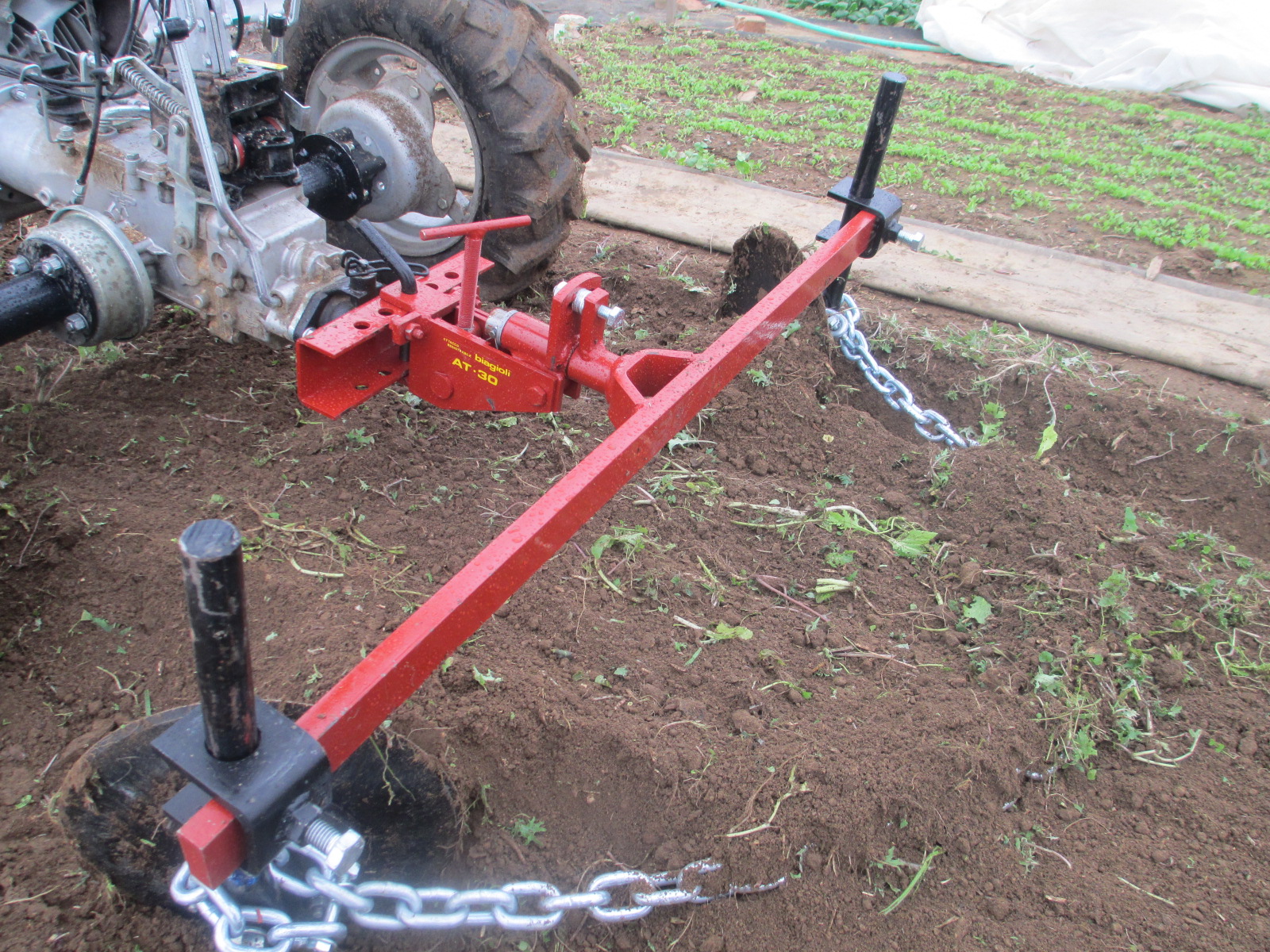

Bedshaper with Disk Hillers,
tool carrier & drawbar

This tool has shank-mounted disk hillers on each side, clamped to a 45” wide frame. The disk hillers are more effective than furrowers or ridgers for “throwing” up the soil to make a raised bed, as the disks are rotating by ground contact as they are pulled through the soil. A drag chain in the rear pulls the “ridges” in and levels off the top of the bed. Makes beds up to 32” wide and and it will raise a bed 2 to 4 inches in a single pass; up to 6 inches in multiple passes. Narrower beds can be proportionally taller if desired. The disk hillers in this picture are adjusted for throwing soil inward to form a bed, but they are fully adjustable and can be turned “out” to flip soil outward, for hilling/ridging of rows too far apart to use a hiller/furrower, for example. The Drawbar on the Aldo Biagioli brand tools (shown below) attaches to tractor at PTO mounting, for a solid and sturdy mount. (Other brands of Ridger/Bedshapers on the market attach at the tractor “tow hitch” mounting, which, in our testing, has proven to be a poor place to mount such an implement, as it is very hard to control the “side-swing” of the tool… the “limiter” bolts supplied on the tow-hitch type of tool carrier simply have very little surface to brace against, and they deform easily. We have chosen NOT to carry these other brands, due to this problem.)

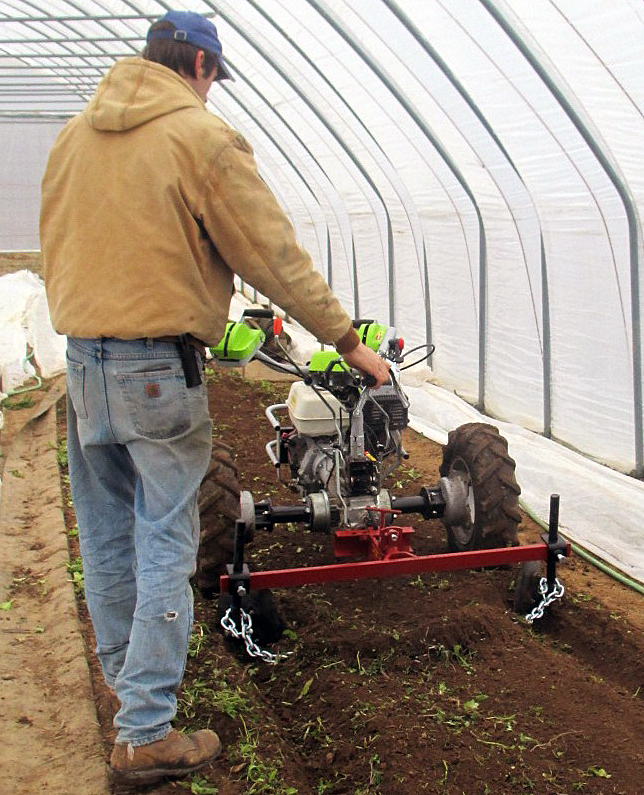

Grillo G110 tractor with 16” axle extensions,
using bedshaper in high-tunnel

The Disk Hillers and Clamps can also be purchased separately for mounting on any of the tool-bar/cultivators we offer (see pricing below). If you want no compressed soil at all in your finished beds, our fixed Axle extensions (up to 16” total) or Adjustable axle extensions will put the wheels outside the finished bed. (See Tractor Accessories page) We actually built the prototype of this tool for Eliot Coleman, and we then communicated the design to Aldo Biagioli, who now builds them for us.

NOTE: This bedshaper will produce a raised bed which works with our 4-foot Plastic Mulch Layer (NOT the 3-foot mulch layer!) Wheel weights may be needed for this tool, depending on the size of the tractor operating it, and the soil type. Differential drive tractors only.

Click here for a video of a walk-behind tractor using the bedshaper with disk hillers (tractor also equipped with 16” axle extensions)

THIS TOOL REQUIRES THE DRAWBAR AND TOOL CARRIER SHOWN BELOW!! Angle of frame relative to tractor adjusted by T-handle crank on Tool Carrier…this allows “attack” angle of the tool to be adjusted. (NOTE: If purchasing multiple implements made by Aldo Biagioli, ONLY ONE Tool Carrier and Drawbar need to be purchased! Tool carrier and Drawbar change quickly from implement to implement with just one pin.)


Drawbar (Left) and AT-30-ET Tool Carrier (Right)
with hookup hardware

Tool Carrier & Drawbar Assembly Instructions



AS2-5-D Aldo Biagioli Mini Bedshaper w/ disk hillers

  • Fits BCS 732 -948, Grillo G85d - G131
  • Minimum recommended tractor tire size 5x10x20” (larger OK)
  • May require wheel weights
  • MSRP: $399 $384

Drawbars for Aldo Biagioli implements

  • BP-80 Fits BCS or Grillo bolt-on PTO MSRP: $50 $45
  • BP-80-QH Fits Quick-coupling PTO (specify tractor brand & model) MSRP: $65 $60

Tool carrier for Aldo Biagioli implements

  • AT-30-ET (fits Cultivators, Potato plow, Bedshaper, Subsoiler): MSRP: $95 $90
  • ET 1006 Category 1, 3-point hitch adapter frame (allows Aldo Biagioli tools to be attached to a small 4-wheel tractor with category 1 3-point hitch mount–Requires “bolt-on” drawbar above): MSRP: $160 $150

Disk Hillers, Furrowers & Clamps (individually–WITHOUT tool bar)

  • AS 33132 Shank-mount disk hiller MSRP: $70 $65
  • AB STD Clamp required for disk hiller, with bolt MSRP: $24 $21
  • AB SSOL Shank-Mount Furrower MSRP: $85 $80
  • AB STET-18 Clamp required for Shank-Mount Furrower, with bolt MSRP: $25 $21
