Grillo G85D - 9 or 10HP
Walk-behind Tractors
Grillo G110 - 13 or 14 HP

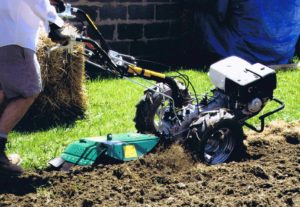

Grillo Model G107D walk-behind tractor

(Shown with 11hp Honda engine & Rotary Plow implement)

The G107D is our least-cost “full-featured” tractor, with all the transmission ‘bells & whistles’: 3 working speeds plus transport speed in “trailer-pulling” direction, differential with lock, and steering brakes. The slightly smaller HP engine choices and slightly older-fashioned controls keep the cost lower than the Grillo G110 and BCS 749 / 853 … it will not handle quite the range of implements these larger tractors will, due to less available power, but it still handles over 90% of our implement range.

CLICK HERE for a video showing basic setup & use of the G85 - G107d model tractors


Prices (tractor only…does not include any implement) :

  • 11.5hp Yamaha gas, manual start, 5x10x20” wheels: $2999 $2845
  • 11hp Honda gas, manual start, 5x10x20” wheels: $3099 $2940
  • 11.5hp Yamaha gas, electric & manual start, 5x10x20” wheels: $3349 $3180
  • 11hp Honda gas, electric & manual start, 5x10x20” wheels: $3449 $3270
  • LIMITED AVAILABILITY: 8hp Kohler Diesel, manual & electric start, 5x10x20” wheels: $4234 $3990
  • NOTE: Wheels can be upgraded to 5x12x22” wheels for $85…ask an Earth Tools salesperson for recommendations regarding the best wheel size for your applications.

Specifications

Engine Type/HP GX340 Honda (11hp / 8KW / 18.5 ft-lbs. of torque) OR MX360 Yamaha gas (11.5hp / 8.7KW / 18.7 ft-lbs of torque) OR Kohler KD350 diesel (8hp / 5.8 KW / 16.6 ft-lbs. of torque) (Limited availability on diesel)
Starting System GAS engines: Recoil (manual); OR Electric start with recoil start back-up / DIESEL: Electric start with recoil start back-up
Clutch Conical, serviceable, “Active” automotive type
Transmission All hardened steel gears and shafts supported by ball bearings, in oil bath
Differential
(details here)
Standard, lockable
Steering Brakes Standard, controls at hand grip
Tilling speeds
(rear PTO)
Fwd: 0.8, 1.95, 3.2, 8.7 mph  •   Rev: 0.8, 1.95, 3.2 mph
Mowing speeds
(front PTO)
Fwd: 0.8, 1.95, 3.2 mph   •   Rev: 0.8, 1.95, 3.2 mph
Standard Wheel Size 5”x10”x20”, adjustable track width, tube type. (Click here for wheel options and accessories)
Outside wheel track (w/o accessories) 18, 20, 22 or 25 inches (Click here for a wheel spacing chart)
Safety Features “Active” clutch disengages power to tractor immediately upon releasing handlebars, Reverse Gear/PTO Lockout (to prevent tilling in reverse).
Handlebars Anti-vibrated, instantly adjustable up and down and side-to-side; also fully reversible to convert from front PTO to rear PTO mode. All controls on handles.
PTO Type Independently engaged, 965 RPM at max engine speed
Method of
changing implements
Two 12mm threaded studs with nuts or optional Quick Hitch
Tractor Weight
(w/o implements)
225 lbs (gas), 245 lbs (gas with electric start)

NOTE: Wheel sizes / styles on most new tractors can be changed, if desired, for the “cost difference” in the wheels…ask an Earth Tools salesperson for details.

NOTE FOR HIGH-ELEVATION USE: For folks using these machines at elevations of more than 5000 feet, we offer special carburetor jets for Honda brand engines to make the engines operate correctly at high elevations (not available for other engine brands). Ask a salesperson…
