Rotary Plow
Implements
Rear-tine Tillers - BCS, Grillo

R2 Rinaldi Power Harrows

Power Harrows gently stir & work the soil “horizontally”, offering the ultimate in seedbed preparation and secondary tillage/weed control with no soil inversion or hardpan formation (Also called “Rotary Harrow” or Rotary Power Harrow”) Professional market gardeners and farmers in Europe have been using these machines for many years, and folks in North America are finally “catching on” that these tools are the best secondary tillage option, particularly for soils that are worked multiple times during the growing season. Power harrows are also noted for their excellent grading and leveling work, and are used extensively in Europe for landscaping applications (North American landscapers are slowly catching on). Run at a very shallow depth and with the tractor in a higher gear, they are also effective tools for lawn de-thatching and scarification prior to overseeding.

HOW THEY WORK: Multiple sets of tines rotate on vertical axles for totally horizontal tillage of the soil – NO inversion of soil layers and NO vertical compression leading to hardpan formation. Also, the “stirring” action does not over-pulverize the soil such as can be done with a rototiller; the soil stays in better shape, and can be worked more times in a season without risk of seriously damaging soil structure. The mesh roller in the rear perfectly levels and pre-tamps seedbed for precision seeding and good seed-to-soil contact, and the roller adjusts incrementally up & down for perfect depth adjustments ranging from 0” to 5.5” working depth.

We offer TWO brands of power harrows: The “Original” R2 Rinaldi power harrows, built in Italy since 1979 (this is the brand made famous in Jean-Martin Fortier’s book, The Market Gardener…he purchased an R2 Harrow from us in 2008); and also the BCS-brand “Clovis” harrows, produced in Canada.

We offer the R2 Rnialdi brand because we feel that it is the highest-quality and best-handling line of power harrows on the market, and we also offer the BCS (Clovis) brand simply because we are a BCS dealer. If you are considering one of these implements, please review the following information to better educate you about the differences between these brands:

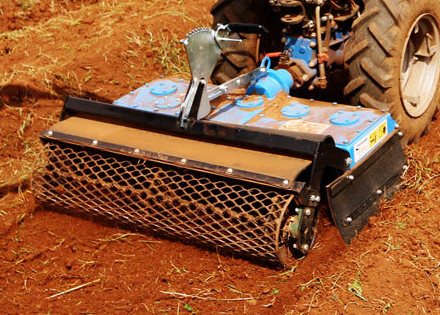

  R2 Rinaldi Harrows BCS “Clovis” Harrows
Drive type Heat-treated, hardened steel gears–MOST DURABLE Chain-drive
Width options 20”, 24”, 30”, 36”, 39” 21”, 30”, 32”
Adjustable Grader blade Available, helps with landscaping projects None
Optional roller styles Mesh roller, Solid roller or Bar-type roller Mesh roller only
Weeding Tine Option Available Not available

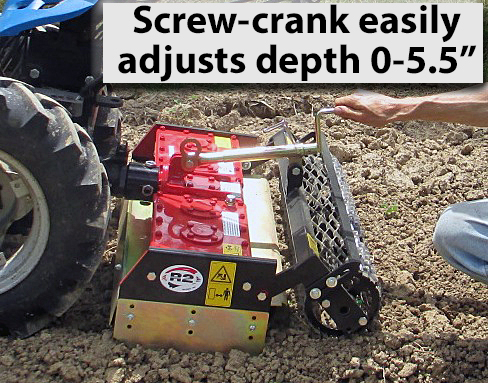

Depth/Height adjustment system: Fast screw-crank with 1/8” depth adjustment increments Lever-type with ½” depth increments (lever-type system designed to help offset the extra weight of the BCS/Clovis harrows, which are 20+ lbs. heavier than the R2 and therefore harder to handle)
Company experience Building harrows since 1979 Building harrows since 2014
CURRENT PROMOTIONS: 20% Discount on one of our hand-forged heavy-duty broadforks with purchase of R2 Power Harrow to fit walk-behind tractor (cannot be combined with other discounts on broadfork or harrow) Free “lightweight” broadfork from BCS with purchase of Clovis power harrow (“light” broadfork will not hold up in heavy soils; for light soils ONLY)

Obviously, the R2 brand harrows offer many advantages in durability and usability, but if a customer simply must have “everything BCS brand” for some reason, then we can certainly supply the BCS “Clovis” harrow.

The current R2 harrows are designed to be the easiest-handling and longest-lasting harrows in each size class. (Revisions were made in early 2016 to the 30” model to improve handling compared to previous R2 30” models.) The power harrows DO have some weight to them, though – this is by design, so they can put enough pressure on the rear roller to “tamp” the soil properly. Based on the tractor model you are applying it to, a front counter-balance weight may be helpful to achieve the best handling (See our Accessories page).
We also recommend that most tractor models be equipped with 5x12x22” or larger wheels for proper ground clearance, particularly when being used on raised beds. (Ask us about our recommendations for wheel size & possible counterbalance weights) NOTE: IF YOU HAVE VERY SOFT / SANDY SOILS, FRONT COUNTER-BALANCE WEIGHTS WILL LIKELY BE NEEDED – OTHERWISE, THE GROUND-PRESSURE OF THE ROLLER MAY “SQUISH” THE SOIL OUT TO THE SIDES TOO MUCH, PARTICULARLY ON RAISED BEDS!


Jean-Martin Fortier with the current EL series R2 Rinaldi 30" Power Harrow...His quote: "The new R2 harrow is really improved (over the old heavier R2 model I started out with)...easier to handle, better balanced, and a great product. I recommend it!"

Due to the fact that the Power Harrows are the only soilworking implement that has an oscillating swivel-joint at the PTO coupling allowing the harrow to “float” independent of the tractor axle, these tools are also coveted by the landscaping industry for leveling out / renovating yards or any lumpy terrain. (On the EL series R2 power harrows, this “floating” feature can be “locked” in the center position if desired) Some of the R2 brand harrows (the “Landscaping” versions) are even available with a small (removable) adjustable-height grader blade at the front to level out the soil in a front-to-rear plane as well. (NOTE: for agricultural work, the grader-blade is typically removed, because when it is place, the harrow won’t go over 3” deep without the grader blade starting to push soil.)

Another option that R2 offers is 3 different roller types: The standard (and most popular) is the expanded-mesh roller, but also available are solid rollers and bar-(cage) style rollers, depending on the finish you want and the soil type/conditions you have. The BCS Clovis harrows offer a mesh roller only.

R2-brand 30” units are also available with a full-width drop-seeder attachment mounted between the harrow and the mesh roller for lawn/cover crop seeding.

(This seeder also available in a configuration that fits the tractor DIRECTLY, without the harrow…see our Spreading/Seeding implements section) NOTE: The Drop-Seeder CANNOT be fitted behind a BCS / Clovis harrow!!

ALL R2 RINALDI POWER HARROWS CAN BE FITTED DIRECTLY TO OLDER BCS WALK-BEHIND TRACTOR MODELS (provided they have the power & wheel size needed) AT NO EXTRA CHARGE – SIMPLY REQUEST A PTO COUPLING FLANGE ON THE HARROW SPECIFIC TO THE OLDER BCS WALK-BEHIND TRACTOR MODEL YOU HAVE.


NEW ACCESSORY! WEEDING TINE KIT

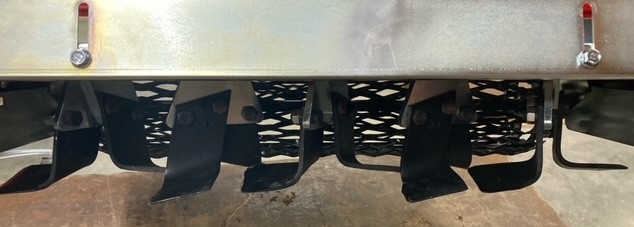

Weeding Tine Kit installed on 30" R2 Power Harrow

We now offer a “Weeding Tine Kit” exclusively to fit the R2 Rinaldi Power harrows. While the standard “straight” tines of the power harrows can be used for weeding, sometimes they are just not aggressive enough, and some weeds do not get uprooted / damaged enough to be eliminated. This kit comes with L-shaped tines, which work like rotating “scuffle” hoes to slice weeds off at any depth (depth is of course precisely controlled by the screw-crank adjusted roller that comes standard on the Power Harrows)…typically, you want to run this at a very shallow depth, so as not to bring up more weed seeds. EXCELLENT for stale-bedding applications, keeping pathways clear, or any other application where shallow weed control is desired. Installation of kit is 2 bolts per tine x how many tines you have (a 30” harrow has 10 tines).

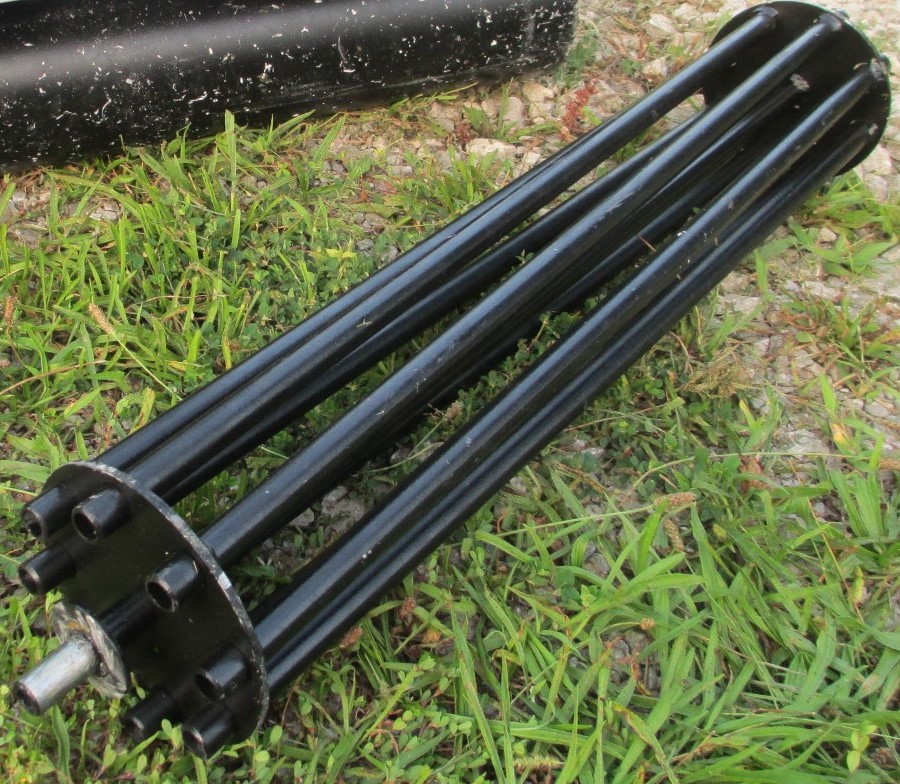

Bar / Cage type roller

NOTE: The “bar/cage-type roller” may also be desired when using the Weeding Tines, as this roller type has much less steel-to-soil contact surface, so it has less of a chance of pressing the weeds back into the soil where they could potentially re-root. PRICES FOR WEEDING TINE KITS AND CAGE ROLLERS BELOW, WITH HARROW PRICES


NEW ACCESSORY! REAR GRADER BLADE

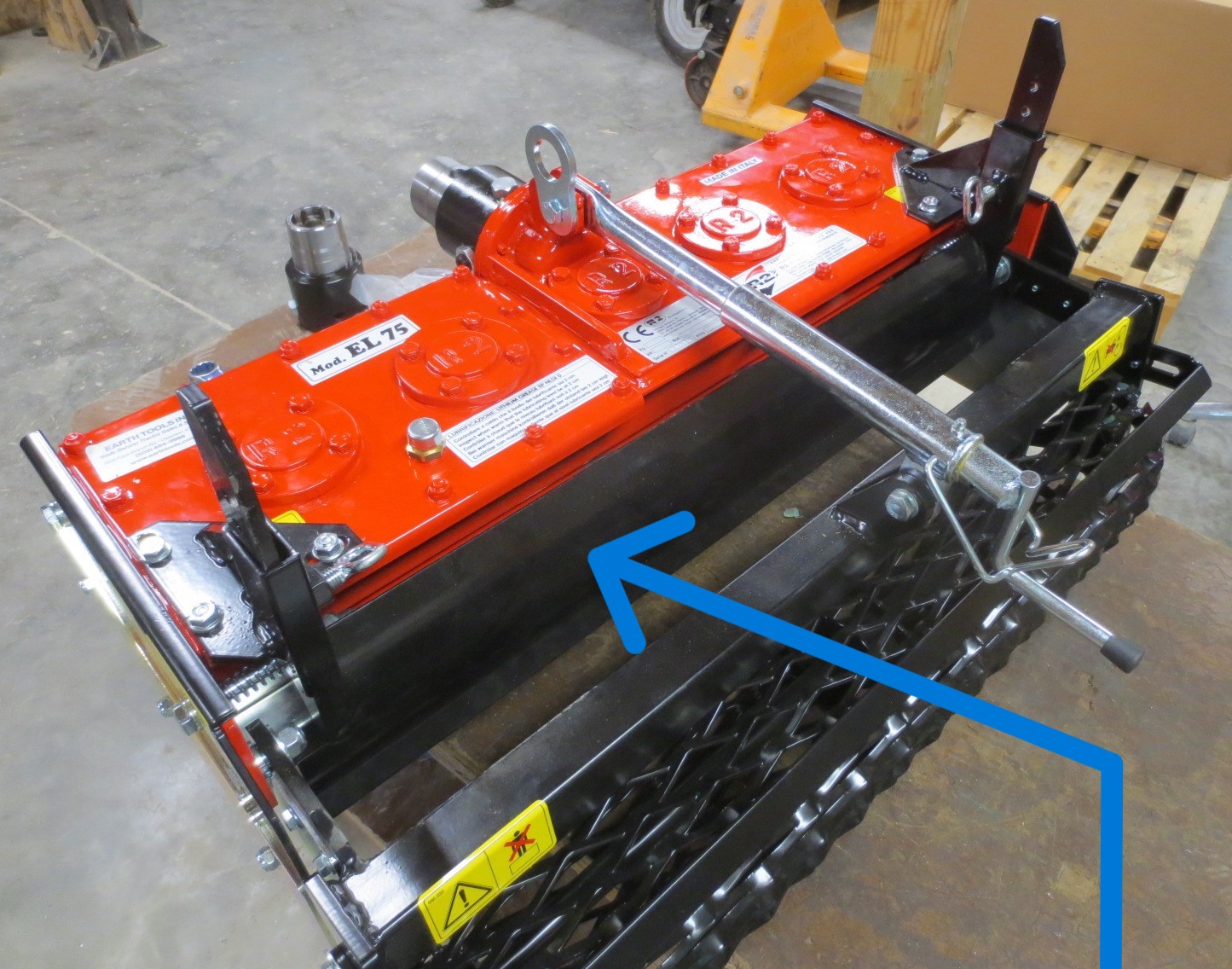

Rear Grader installed on 30" R2 Power Harrow

We now offer a “Rear Grader Blade” exclusively to fit the R2 Rinaldi 30” Ag-version Power harrow. (The “Landscaping” version of the R2 Power Harrows already come equipped with a Grader Blade, but this new kit gives the “grading” option to folks wanting the lighter-weight, easier-to-use AG version of the Harrow). Installs between the harrow body and the mesh-roller (as seen above) in about 15 minutes, and adjusts up & down in seconds to control the amount of material being “graded’. EXCELLENT for leveling or landscaping applications! (NOT needed for agricultural applications)

PRICE BELOW, WITH HARROW PRICES


ROW MARKER KIT

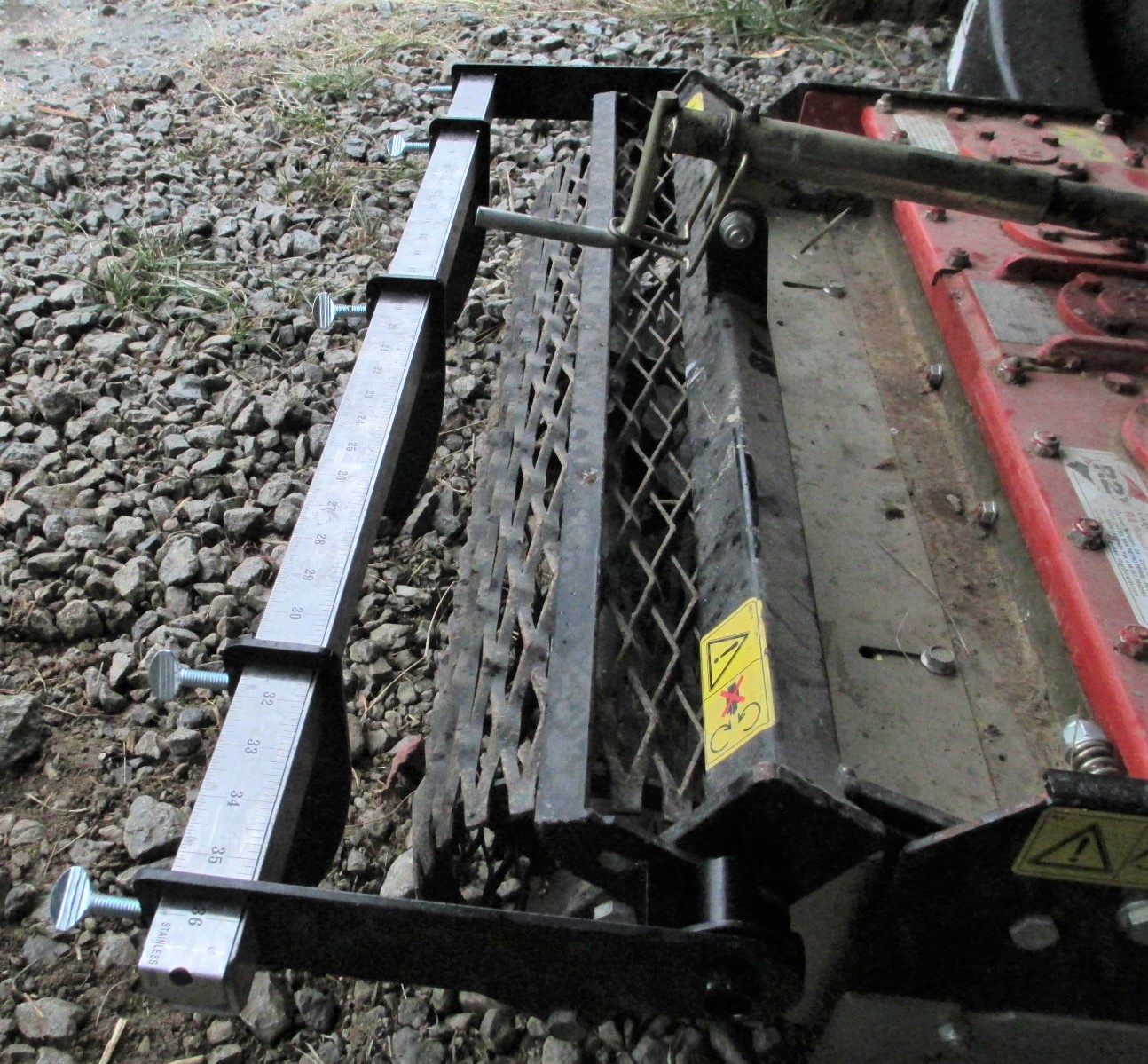

Row-marker frame with 3 markers installed

Now available to fit the R2 Rinaldi EL75 30” Power Harrow. Accommodates up to 6 markers on the frame. Markers easily adjusted / added / subtracted with thumb-screws. The markers are rounded on the bottom, so as to avoid catching and dragging organic material (cover crop residue, etc.). Once the support brackets are attached to harrow roller frame (4 bolts, 2 minutes), the row-marker frame installs or removes in about 15 seconds (the brackets can stay on the harrow from then on). Flips “up” when you need to turn the tractor around, back up, etc. -SEE BELOW IN R2 30” HARROW PRICE SECTION FOR PRICES- NOTE: If your soil texture / type is on the “rougher” side and the “fingers” don’t make enough of an impression in the soil, you can always add some extra weight to the top of the row-marker frame by affixing a piece of steel or a chunk of wood with some wire, etc.


Row-marker "down" for marking


Row-marker "up" for turning, etc.
















NOW AVAILABLE:

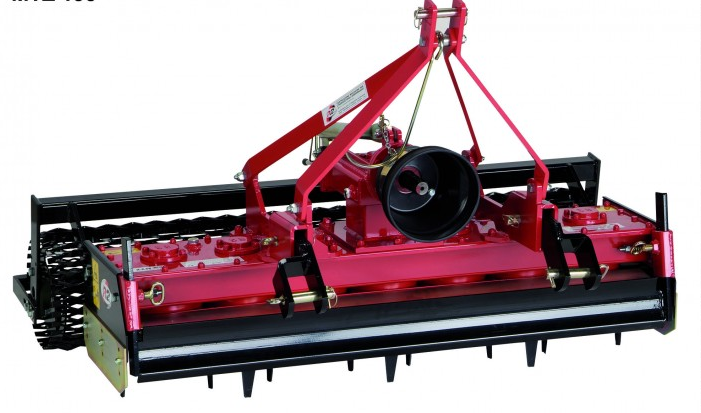

Due to popular demand, we are now offering R2 Rinaldi power harrows to fit 4-wheel tractors. (Tractor must have 540 RPM PTO & category 1 3-point hitch)

Available sizes range from 35” working width up to 61” working width. 35” size typically stocked (see price list below, at bottom), all other sizes available by special order. The 3-point-hitch harrows come with a PTO shaft as well.

NOTE #1: To protect the harrow gearbox from damage against rocks, roots, etc, the 3-point-hitch-mounted R2 harrows come equipped with a shear bolt in the PTO shaft. If you have lots of rocks and other impediments in your soils, make sure to order some extra shear bolts, because you’ll be replacing them a lot!
NOTE #2: In order to have the protection of the shear bolt, ONLY THE FACTORY-SUPPLIED PTO SHAFT CAN BE USED WITH THE 3-POINT-HITCH HARROWS! If you use a PTO shaft off another piece of equipment, it may not have a shear-bolt in it, so you could damage your harrow!


Click Here to view a short (older) video of an R2 power harrow in action.

Click Here for a complete video of the NEW R2 power harrow.

Click Here for a video about a Tiller With Depth Roller System vs. Power Harrow.


PRICES:

20” R2 Rinaldi Gear-Driven Power Harrow

  • EL50-B fits BCS 722 - 853 (not 750) MSRP: $2199 $1979
  • EL50-G fits Grillo G85-G110 MSRP: $2199 $1979
  • Minimum tractor HP: 8 hp
  • Weight: 127 lbs
  • Larger-than-standard wheels may be required on tractor
  • May require front weight for tractor, for proper balance
  • Available in “Landscaping” version by special order (adds $100)
  • Weeding Tine Kit for 20” & 24” R2 Harrows: MSRP: $199 $177
  • Bar / Cage type roller for weeding applications: R2 039.058: MSRP $130 $115

21” BCS “Clovis” Chain-Driven Power Harrow

  • 921PH210 fits BCS 722 - 853 (not 750) MSRP: $2749 $2611
  • Minimum tractor HP: 8hp Gas
  • Weight: 152 lbs
  • Larger-than-standard wheels may be required on tractor
  • May require front weight for tractor, for proper balance
  • Requires that tractor be equipped with female quick-coupling

24” R2 Rinaldi Gear-Driven Power Harrow

  • MT60-B fits BCS 732 - 853 (not 750) MSRP: $2399 $2159
  • MT60-G fits Grillo G85d - G110 MSRP: $2399 $2159
  • Minimum tractor HP: 9hp Gas, 8hp Diesel
  • Weight: 155 lbs
  • Minimum recommended tractor wheel size 5x10x20” (larger wheels BETTER!)
  • May require front weight for tractor, for proper balance
  • This is a “Landscaping” version harrow (with adjustable & removable front “grader” blade), but works fine for Agricultural uses as well
  • Weeding Tine Kit for 20” & 24” R2 Harrows: MSRP: $199 $177
  • Bar / Cage type roller, with frame for weeding applications: R2 031.002: MSRP $285 $250

30” R2 Rinaldi Gear-Driven Power Harrow (Best seller)

  • EL75-B fits BCS 732 - 853, 750
  • EL75-G fits Grillo G85d (10hp) - G131
  • Minimum tractor HP: 10hp Gas, 8hp Diesel
  • Weight: 163 lbs
  • Minimum recommended tractor wheel size 5x10x20” (larger wheels BETTER!)
  • May require front weight for some tractor models, for proper balance
  • May require additional accessory to fit BCS 750
  • MSRP: $2799 $2520
  • Drop-seeder to fit R2 30” harrow (WILL NOT FIT BCS “Clovis” Harrow): Item 036.750-H: MSRP: $1749 $1590
  • Row-Marker FRAME (does not include individual markers) to fit EL75 harrow (Item ET ROW MARKER FRAME-H) MSRP: $105 $90
  • MARKERS for above Row-Marker frame - Frame will accept up to 6 (Item ET ROW MARKER) $18 $16 each
  • Weeding Tine Kit for 30” & 36” R2 Harrows: MSRP: $325 $295
  • Bar / Cage type roller for weeding applications: R2 039.044: MSRP $150 $130
  • Adjustable Rear Grader Blade for EL75 Harrow: Item # Rear Grader EL75: MSRP $209 $190

30” BCS “Clovis” Chain-Driven Power Harrow

  • 921PH280 fits BCS 732 - 853, 750
  • Minimum tractor HP: 10hp Gas
  • Weight: 185 lbs
  • Minimum recommended tractor wheel size 5x10x20” (larger wheels BETTER!)
  • Requires front weight for most tractors, for proper balance
  • Requires that tractor be equipped with female quick-coupling
  • MSRP: $2849 $2706

30” R2 Rinaldi “Landscaping version” Gear-Driven Power Harrow (Includes adjustable front Grader Blade)

  • MTL75-B fits BCS 749, 852, 853, 750
  • MTL75-G fits Grillo G110 - G131
  • Weight: 212 lbs
  • Minimum recommended tractor wheel size 5x10x20” (larger wheels BETTER!)
  • Requires front weight for some tractor models, for proper balance
  • May require additional accessory to fit BCS 750
  • This is a “Landscaping” version harrow (with adjustable & removable front “grader” blade), but works fine for Agricultural uses as well
  • MSRP: $2899 $2620
  • Weeding Tine Kit for 30” & 36” R2 Harrows: MSRP: $325 $295
  • Bar / Cage type roller, with frame for weeding applications: R2 037.027: MSRP $330 $280

32” BCS “Clovis” Chain-Driven Power Harrow

  • 921PH320 fits BCS 749 - 853, 750 (we do not recommend for 732-739 due to the short handlebars on those models)
  • Minimum tractor HP: 11hp Gas
  • Weight: 215 lbs
  • Minimum recommended tractor wheel size 5x10x20” (larger wheels BETTER!)
  • Requires front weight for tractor, for proper balance
  • Requires that tractor be equipped with female quick-coupling
  • MSRP: $2949 $2801

36” R2 Rinaldi Gear-Driven Power Harrow

  • MT90-B fits BCS 750
  • MT90-G131 fits Grillo G131
  • Minimum tractor HP: 13hp Gas, 11hp Diesel
  • Weight: 242 lbs
  • Requires front weight for tractor, for proper balance
  • This is a “Landscaping” version harrow (with adjustable & removable front “grader” blade), but works fine for Agricultural uses as well
  • MSRP: $3099 $2800
  • Weeding Tine Kit for 30” & 36” R2 Harrows: MSRP: $325 $295
  • Bar / Cage type roller (with frame) for weeding applications: R2 031.006: MSRP $350 $300

39” R2 Rinaldi Gear-Driven Power Harrow

  • EL100-B fits BCS 750
  • EL100-G131 fits Grillo G131
  • Minimum tractor HP: 13hp Gas, 11hp Diesel
  • Weight: 235 lbs
  • Requires front weight for tractor, for proper balance
  • MSRP: $3250 $2925
  • Weeding Tine Kit for 39” R2 Harrows: MSRP: $450 $413
  • Bar / Cage type roller for weeding applications: R2 039.057: MSRP $190 $170

35” R2 Rinaldi Gear-Driven Power Harrow TO FIT 4 WHEEL TRACTOR 3-POINT HITCH

  • MTZ100 fits 4-wheel tractors with category 1 3-point hitch, 540 RPM PTO, and minimum 14 HP at PTO.
  • Working width 35”, total width 39”
  • Weight: 330 lbs
  • MSRP: $3999 $3,600
  • Weeding Tine Kit for 30” & 36” R2 Harrows: MSRP: $325 $295
  • Bar / Cage type roller (with frame) for weeding applications: R2 031.006: MSRP $350 $300
  • LARGER 3-POINT-HITCH HARROW SIZES AVAILABLE BY REQUEST: 41.5”, 48”, 55”, 61” – CALL FOR PRICES AND AVAILABILITY
