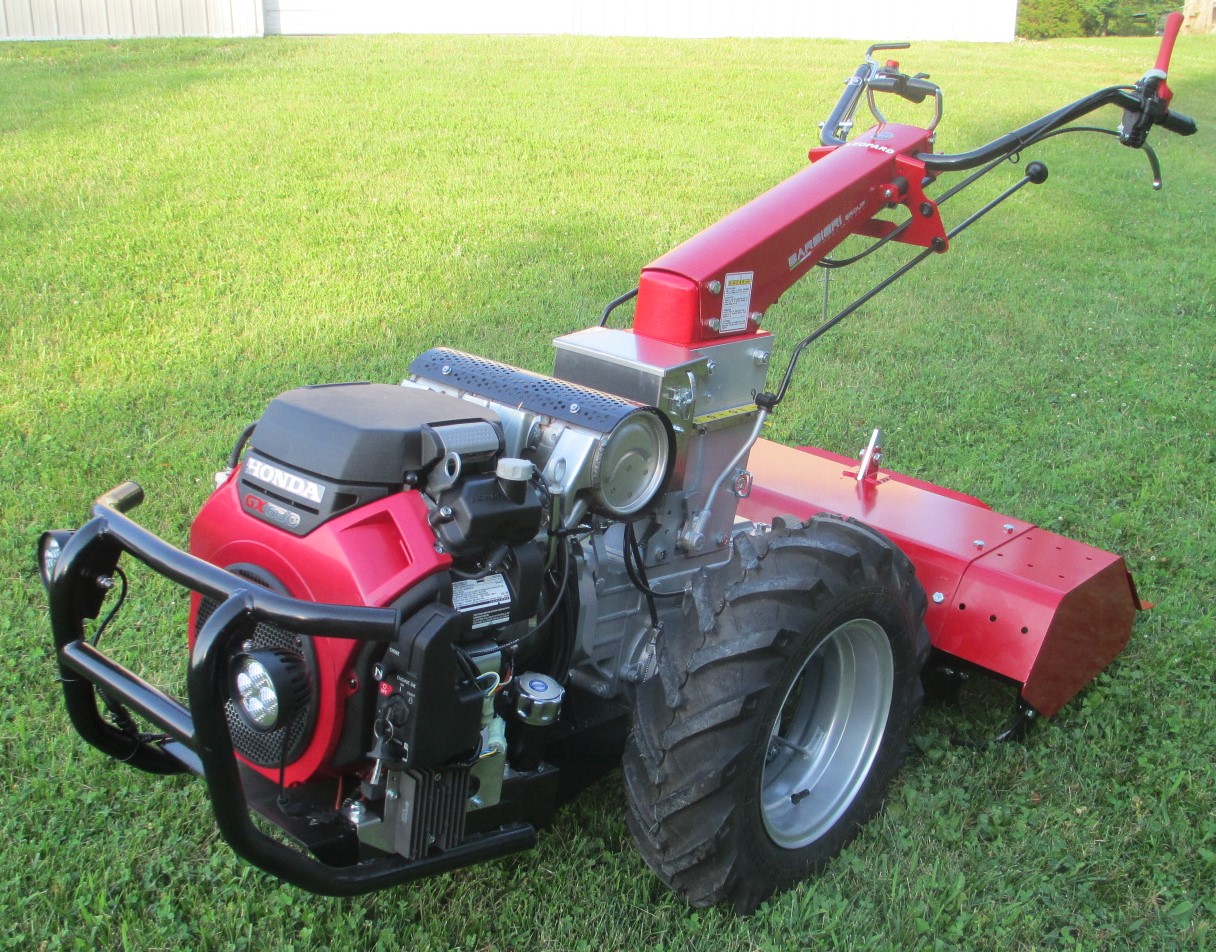

(Shown with 20.8 hp Honda engine and 39” tiller implement)
Barbieri actually offers a full line of walking tractors and motor-hoes, but we decided that there was too much “overlap” between most of their models and our existing BCS and Grillo lines. HOWEVER, their LARGEST model is by far bigger, heavier & tougher than anything BCS or Grillo offers. This unit is very similar to the old Goldoni Special-Lux models (Goldoni is out of business, but some folks may be familiar with these old “brutes”) – it features a Completely Cast-Iron Transmission Housing for the utmost in durability, and it is our only walking tractor that offers a 2-speed PTO to allow more versatility in wheel-to-implement speed ratios. It also comes standard equipment with and a second “synchronized” PTO shaft for utilizing the “Driven-Wheel Trailer”. Headlights are standard equipment too! This is the absolute best machine to operate the Reciprocating Spader implement, due to the weight and durabilty built into this machine. (NOTE: this unit is built and geared primarily for Rear-PTO applications, so you will note that we do not offer many Front-PTO implements for it)
SCROLL DOWN FOR TRACTOR & IMPLEMENT PRICES
SCROLL TO BOTTOM OF PAGE FOR MORE PICTURES
Barbieri Leopard new tractor setup Video
Specifications
| Engine Type/HP | GX630 20.8 hp Honda 2-cylinder gas with pressurized lubrication, oil filter, oil cooler, and hour-meter |
| Starting System | Electric |
| Clutch | “Active” Automotive type, flat plate, serviceable |
| Transmission | All hardened steel gears and shafts supported by ball bearings, in oil bath, with CAST-IRON transmission housing |
| Differential (details here) |
Standard, lockable |
| Steering Brakes | Standard, controls at top of handle column |
| Tilling speeds (rear PTO) |
Fwd: 0.9, 1.9, 4.2, 8.0 mph • Rev: 1.9, 4.0 mph |
| Mowing speeds (front PTO) |
Fwd: 1.9, 4.0 mph • Rev: 0.9, 1.9 mph |
| Wheel Size | 6.5/8x12x23” OR 6.5/80x15x26” tractor tread, adjustable track width, tube type (speeds above are with 23” wheels, at full engine throttle) |
| Outside wheel track (w/o accessories) | 24.5 or 30 inches |
| Safety Features | “Active” clutch disengages power to tractor immediately upon releasing handlebars, Reverse Gear/PTO Lockout (to prevent tilling in reverse). |
| Handlebars | Instantly adjustable up and down and side-to-side, completely reversible to convert to front- PTO mode |
| PTO Type | Independent, 2 speeds: 600 rpm OR 900 rpm at max engine speed, with second Synchronized PTO shaft standard equipment to power driven-wheel trailer |
| Method of changing implements |
Two 16mm threaded T-bolts with nuts (No quick-coupling available) |
| Tractor Weight (w/o implements) |
484 lbs |
TRACTOR AND IMPLEMENT PRICES: (NOTE: This tractor has a specific PTO mount, so ONLY the implements listed below will fit it. The full implement selections shown on our “Implements” page DO NOT APPLY to this model.
- TRACTOR: Barbieri “Leopard” model with 20.8 hp Twin-Cylinder Honda gas engine, Electric start (Priced WITHOUT wheels…add desired wheel size below)
$7995$7500 - Pair of 6.5/80x12x23” Adjustable-track-width Tractor-Tread Pneumatic wheels:
$475$450 - Pair of 6.5/80x15x26” Adjustable-track-width Tractor-Tread Pneumatic wheels:
$575$550 - Pair of 22.5” Diameter x 5” wide steel-Cage wheels
$375$350
TILLAGE / SOIL-WORKING IMPLEMENTS
- 39” Adjustable-Width Tiller (Adjusts down to 36”, 32”, or 28”)
$1499$1390 - Berta Rotary Plow, Single version, with counterbalance weights
$1999$1850 - Berta Rotary Plow, Swivel (reversible) version
$3099$2600 - 25” Tortella Reciprocating Spader (including PTO flange to fit Barbieri)
$4098$3900 - 35” Tortella Reciprocating Spader (including PTO flange to fit Barbieri)
$4599$4369 - R2 Rinaldi MTL75 30” Power Harrow, “Heavy” version
$2899$2620 - R2 Rinaldi MT90 36” Power Harrow, “Heavy” version
$3099$2800 - R2 Rinaldi EL100 39” Power Harrow
$3250$2925 - R2 Rinaldi 30” Drop Seeder (fits to above 30” power harrow, OR can be attached directly to the tractor with 036.200 and 021.001 shown below in Accessories section)
$1749$1590 - R2 Rinaldi 39” Drop Seeder (fits to above 39” power harrow, OR can be attached directly to the tractor with flange 021.001 below in Accessories section)
$1899$1750 - R2 Rinaldi 28” Stoneburier tiller (SPECIAL ORDER ONLY)
$3199$2990 - R2 Rinaldi Split-Hood tiller (for seedling cultivation) (SPECIAL ORDER ONLY)
$1799$1619 - All of our Non-PTO-powered Aldo Biagioli implements shown on our Implements page (Bedshaper, Potato digger plow, Moldboard plows, Cultivators, Subsoiler, etc.) will fit, using the DRAWBAR shown below in the “accessories” section, and a Tool Carrier specific to the implement type)
- 4-foot Plastic Mulch Layer (REQUIRES Drawbar and ET BAR-ADAPT adapter–see Accessories section below)
$919$845 - Earth Tools Adjustable Frame Cultivator, without shanks or tools (REQUIRES above Drawbar AND ET BAR-ADAPT adapter to fit–see Accessories section below)
$750$600 (see THIS page for full selection of shanks / tools for this cultivator)
OTHER IMPLEMENTS:
- 34” Berta Flail Mower
$2899$2754 - 72” LVB brand Double-Action Cuuter (sickle) Bar Mower
$2990$2800 - 33” Berta 2-Stage Snowblower:
$2999$2700 - Ravenna Utility Trailer, 1100 lb. capacity (REQUIRES ET 0077 tow coupler shown below in “Accessories” section)
$1899$1500 - Erreppi PTO-Driven Trailer with 1600 lb. capacity (REQUIRES that tractor be equipped with 6.5/80x15x26” wheels
$4799$4500 - 30” Crimper-Roller (REQUIRES ET 0077 tow coupler shown below in “Accessories” section)
$1099$995 - BCS-brand Compost Spreader, 6.5 cubic foot capacity (REQUIRES ET 0077 tow coupler shown below in “Accessories” section)
$2799$2659 - 36” Dozer / Scraper blade (reversible) (REQUIRES Drawbar and ET BAR-ADAPT adapter–see Accessories section below):
$849$806 - 48” Snow / Dozer blade (REQUIRES Drawbar and ET BAR-ADAPT adapter–see Accessories section below):
$750$700
ACCESSORIES
- Item ET 0077: Tow Coupler
$100$90 - Item AB BP80-BAR: Drawbar
$60$55 - ET BAR-ADAPT adapter:
$85$80 - Item BAR-FURR: Hiller / Furrower to fit behind 39” tiller above
$200$180 - **Item ET BW-BAR: Pair of “Barbell” wheel weight adapters (to enable mounting of barbell-weight plates for extra wheel weight) **
$80$75 - Item R2 021.001: Flange to attach above R2 drop seeders DIRECTLY to Barbieri Leopard walking tractor (also requires linkage bar 036.200 for 30” seeder):
$185$175 - Item R2 036.200: Linkage Bar to attach 30” R2 drop seeder DIRECTLY to Barbieri Leopard walking tractor (also requires flange 021.001):
$110$100
Rear view

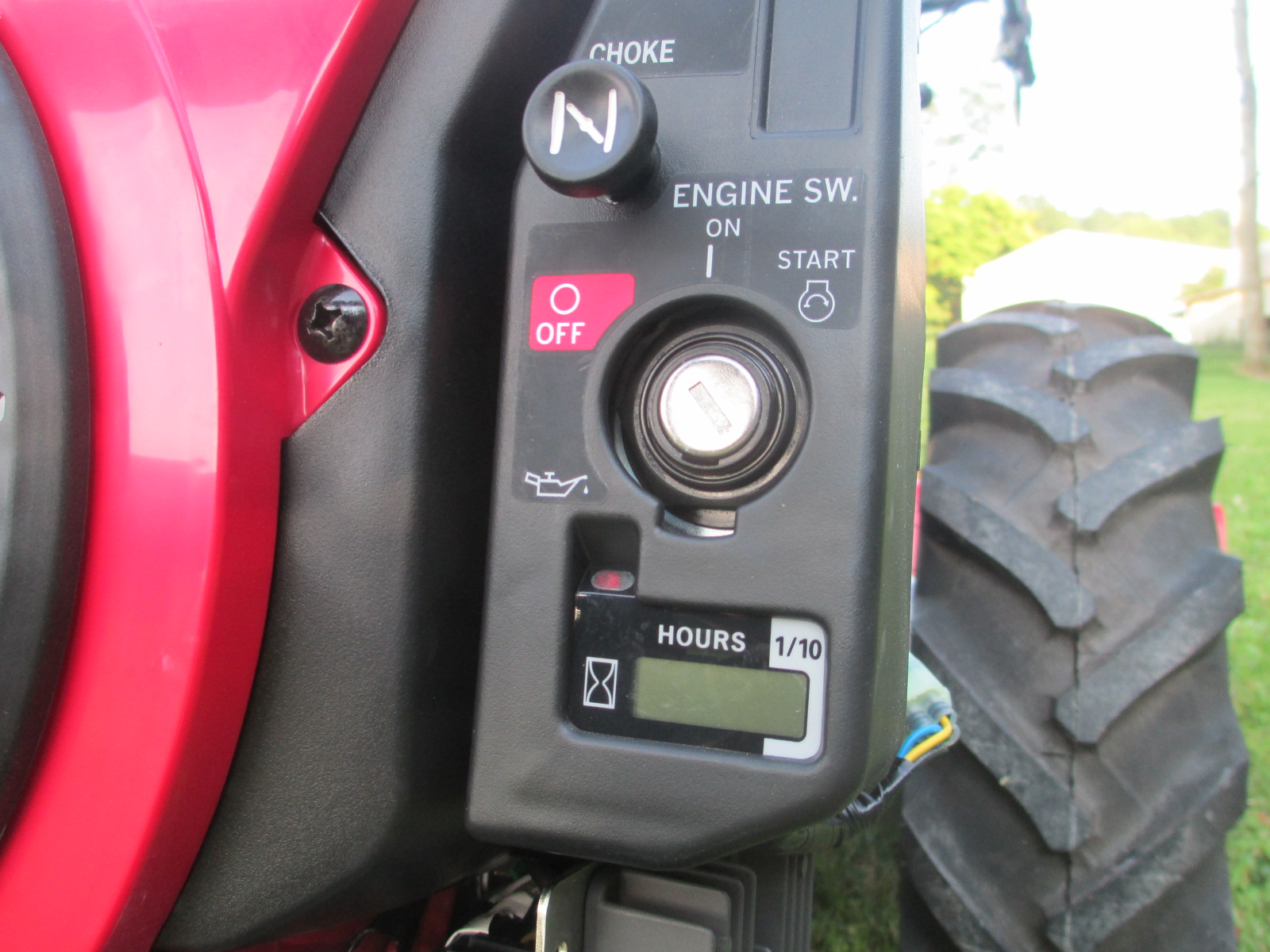

Comes with built-in Hour-Meter

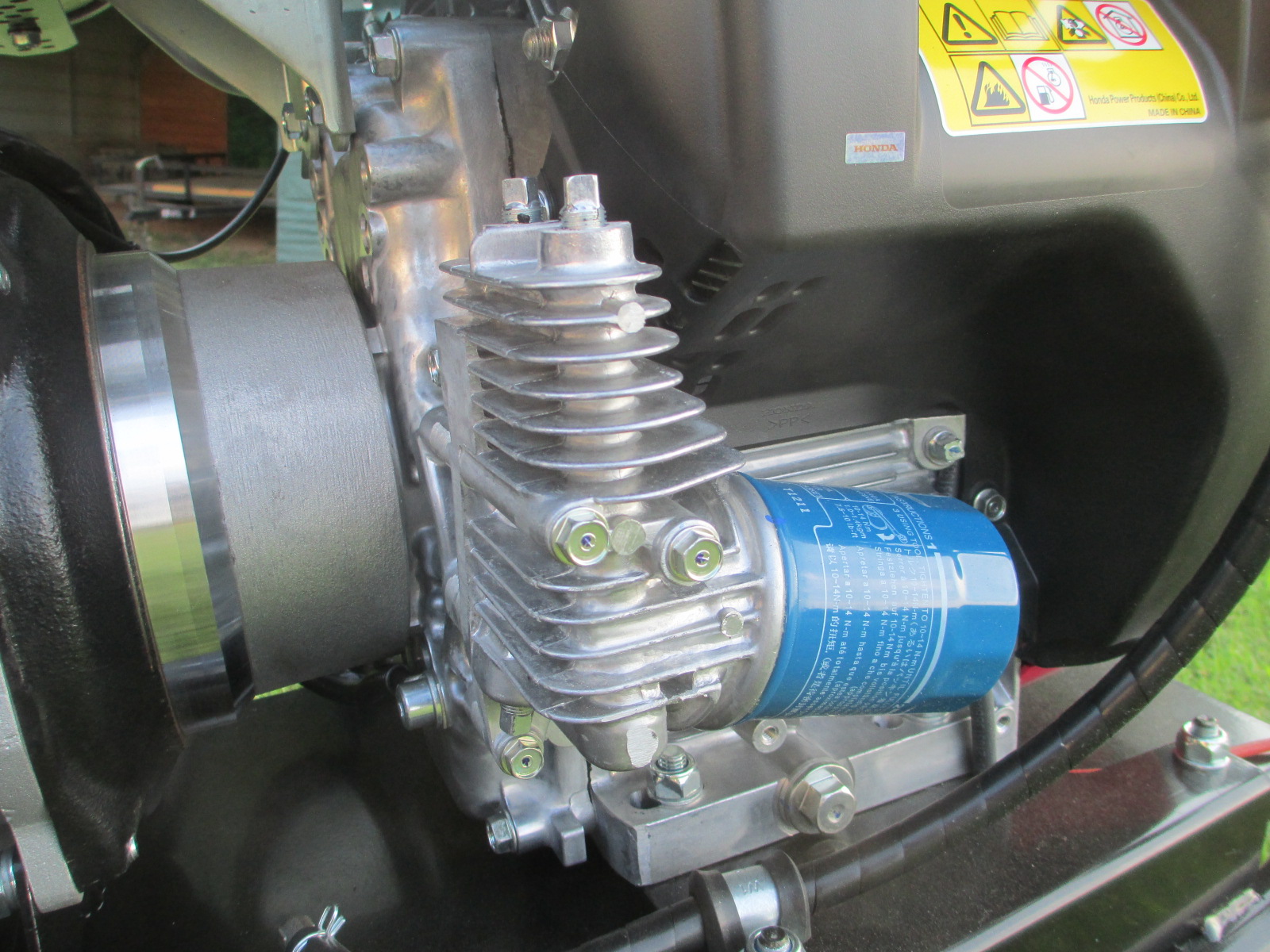

Engine oil filter and oil cooler for commercial use

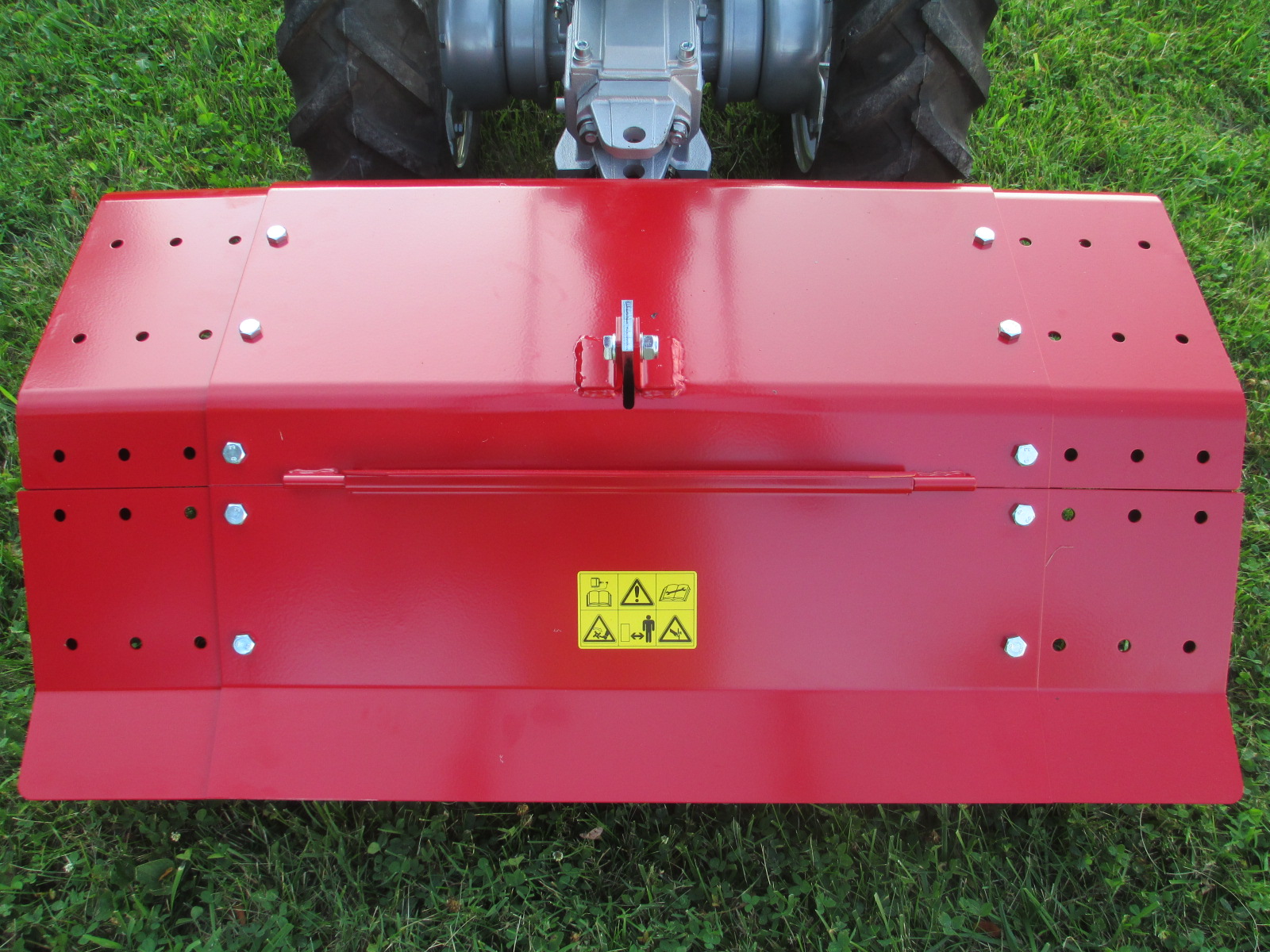

39" tiller is adjustable down to 36", 32", or 28"

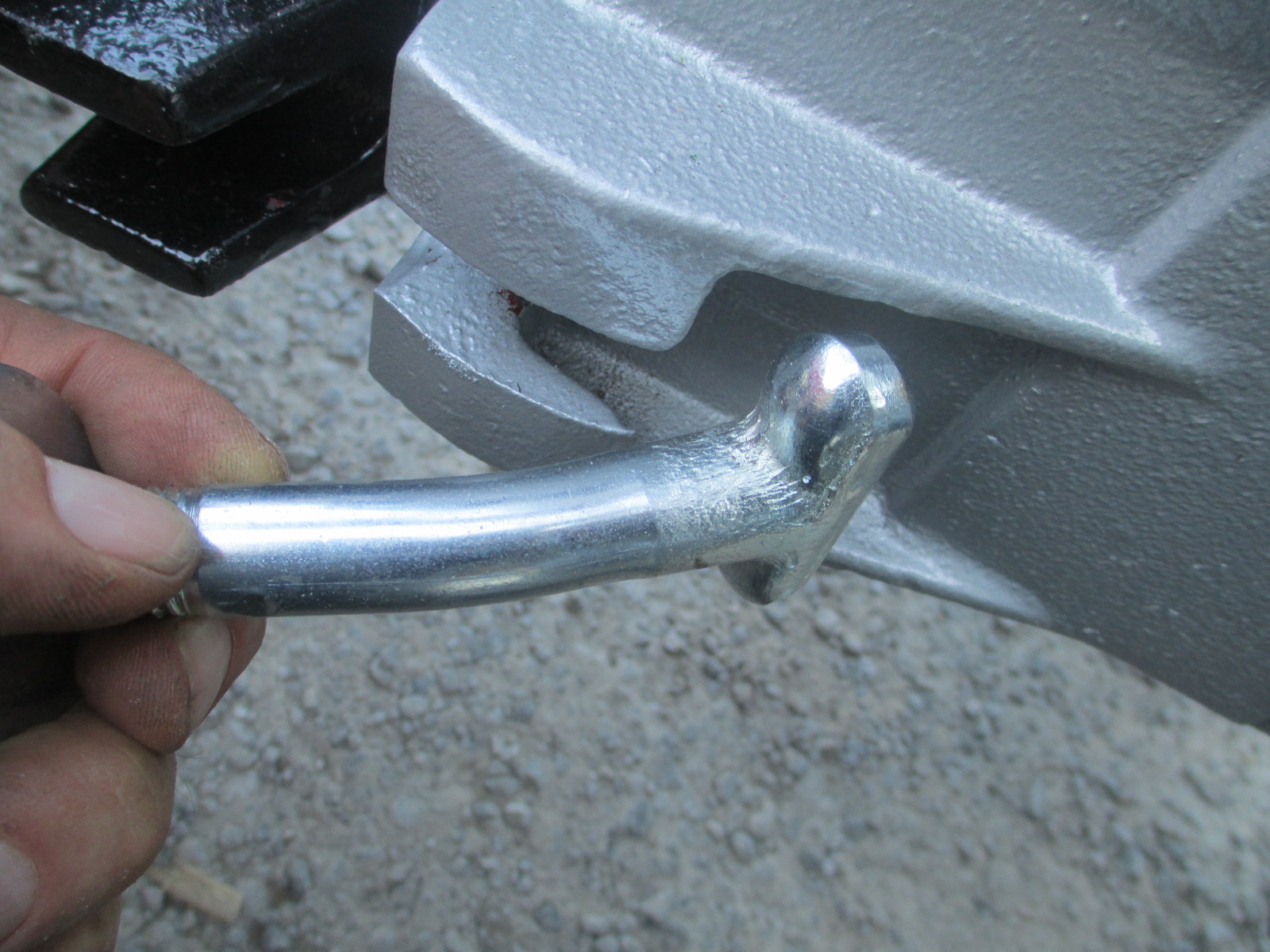

Easily-replaceable "T-Bolts" for PTO mounting

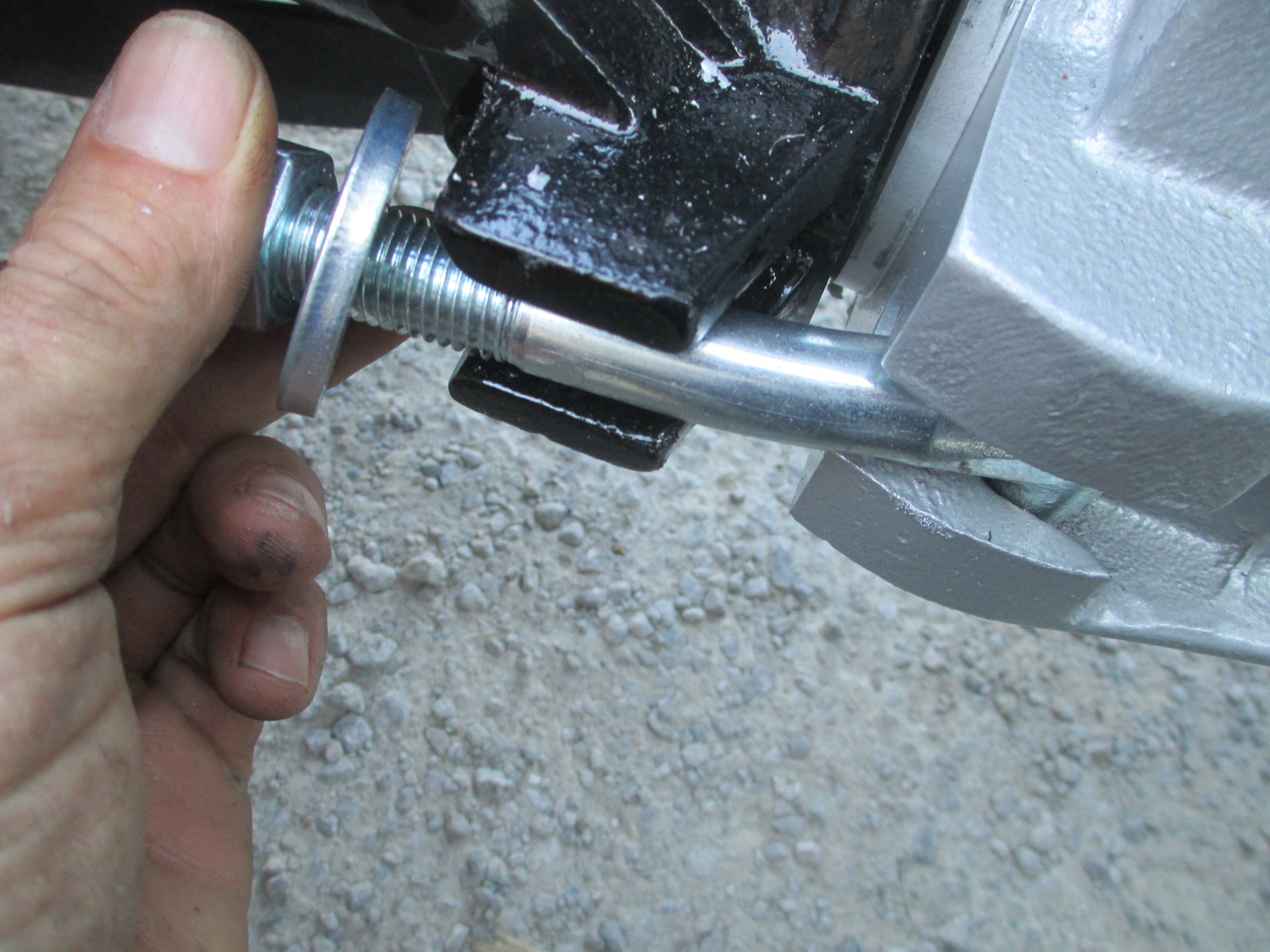

T-bolts "swing in" from sides for easier
mounting of implements

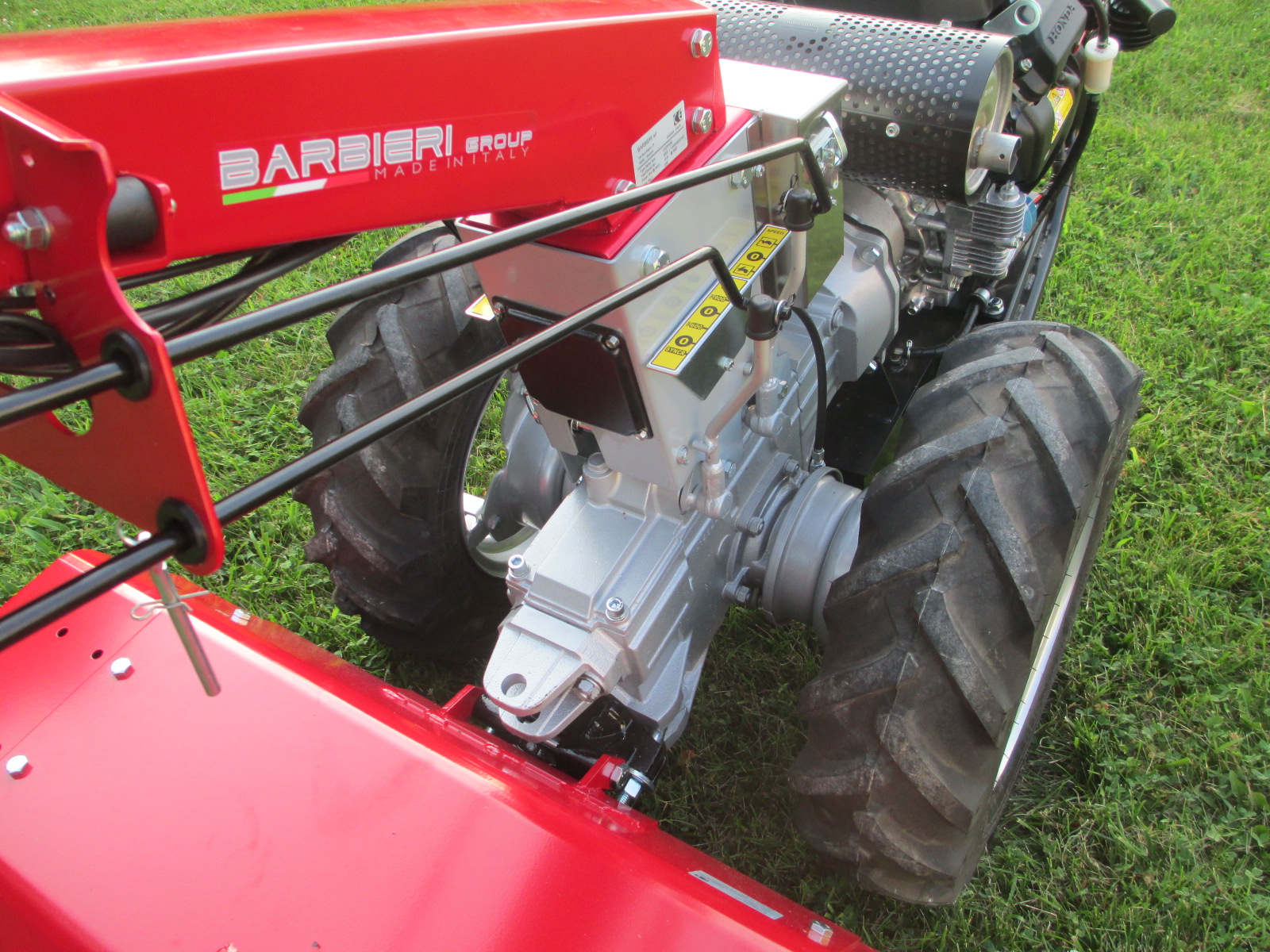

Extremely robust Cast-Iron tranny housing

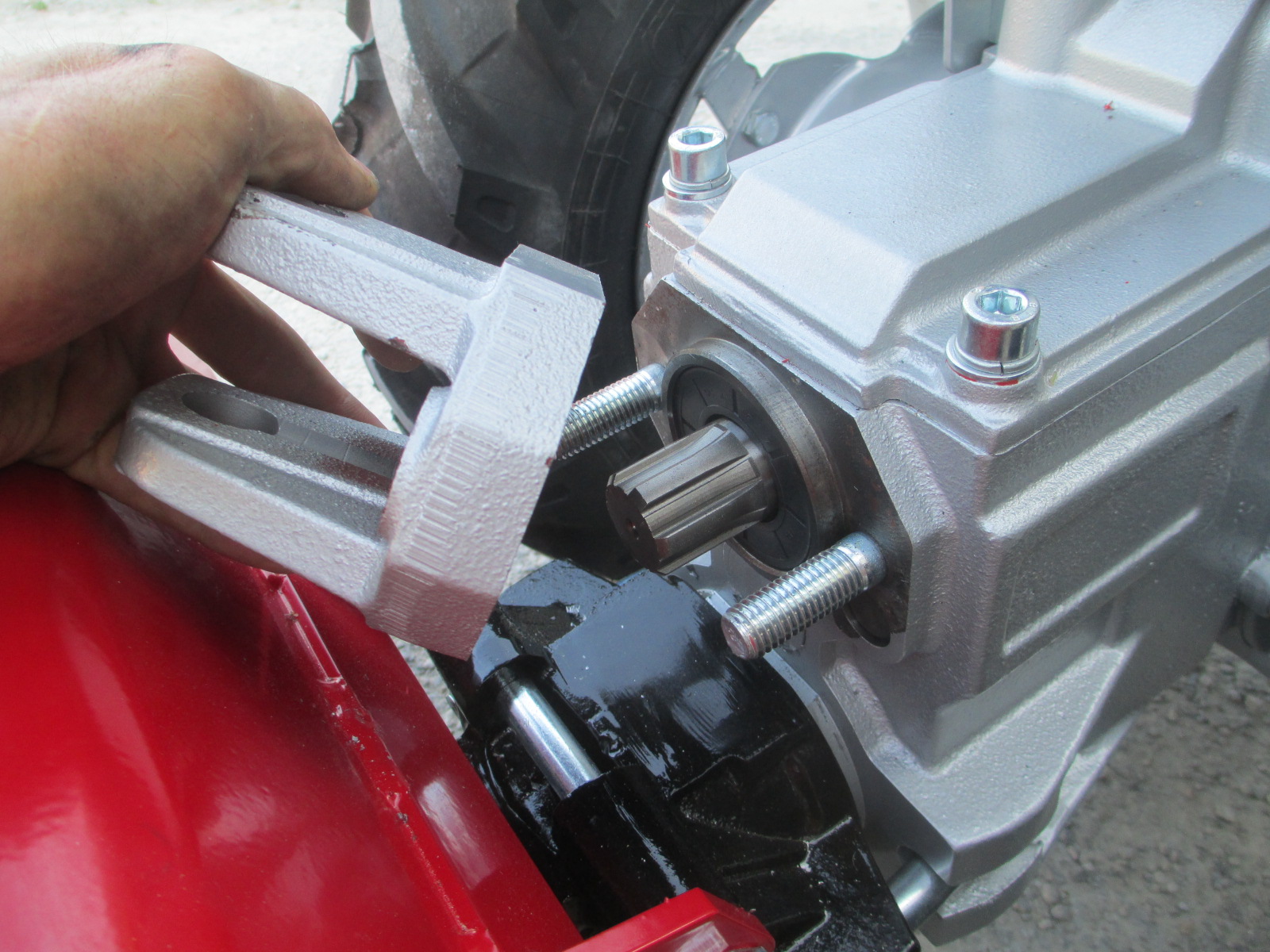

Standard Tow Hitch removes to expose second
"Synchronized" PTO shaft for Driven-Wheel Trailer
