BCS Model 750 walk-behind tractor

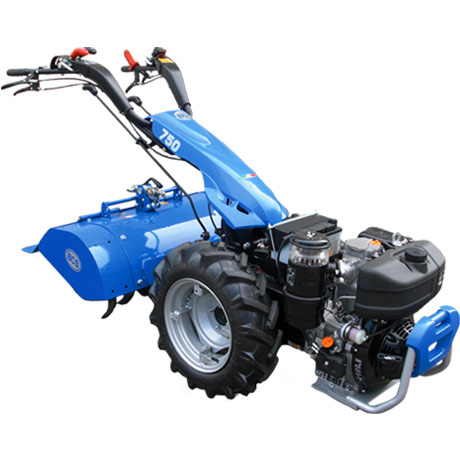

(shown with 33” tiller implement – This is a stock photo supplied by BCS, and it shows a diesel engine…which is not even available on this tractor model in North America! We will be updating this photo in the future)
This tractor uses the same transmission housing, handlebars, and internal gearing as the BCS 749 or 853, but differs in the following ways: 1. PTO coupling flange is cast iron (rather than aluminum), and has an integrated quick-coupling system that is specific to this tractor model. This heavier PTO mount allows connecting to high-weight / high-vibration tools such as the reciprocating spader or 33” tiller implement. (The BCS 33” tiller implement INCLUDES a quick-coupling component to couple with this tractor; this implement coupling must be purchased separately for ALL OTHER implements…so outfitting this tractor with implements can be more expensive than other BCS models) 2. Final-drive reduction-units on sides of transmission reduce ground speeds specifically for the aforementioned two implements, and helpful in general for soil-working tools…ALTHOUGH, the slower working speeds are a negative for mowing/haymaking applications. 3. OPTIONAL factory-made cast-iron “front weights” which can be mounted to brackets directly behind the engine to offset the weight of the very heavy soil-working implements this model can operate, such as the spader (these weights would need to be removed to run most other implements). This machine also features BCS’s new PowerSafe Hyrdo-mechanical “wet” clutch. FOR MORE DETAILS, PLEASE SEE OUR FREQUENTLY ASKED QUESTIONS PAGE, AND CLICK ON QUESTIONS #20 AND #12.
(The model number of this unit follows the European model number sequence, rather than the “Americanized” BCS model sequence which has existed in North America since 1995, which is why it seems a bit out of order).
|Engine Type/HP||GX390 Honda gas (13hp / 8.7KW / 19.5 ft-lbs. of torque)|
|Starting System||Recoil (manual) OR Electric/recoil|
|Clutch||PowerSafe Hyrdo-mechanical “wet” clutch (Click here)|
|transmission||All hardened steel gears and shafts supported by ball bearings, in oil bath|
|Standard, with differential lock|
|Steering Brakes||Standard, controls at hand-grips, with Parking Brake|
|Fwd: 0.6, 1.3, 2.2 mph • Rev: 0.65, 1.4, 2.3 mph|
|Fwd: 0.65, 1.4, 2.3 mph • Rev: 0.6, 1.3, 2.2 mph|
|Wheel Size||6”x12”x22.5” tall, adjustable track width, tractor tread, tube type (Click here for wheel options and accessories)|
|Outside wheel track (w/o accessories)||26 inches or 30 inches (Click here for a wheel spacing chart)|
|Safety Features||Operator presence control (built into PowerSafe clutch system), Reverse Gear/PTO Lockout (to prevent tilling in reverse)|
|Handlebars||Anti-vibrated, instantly adjustable up and down and side-to-side; also fully reversible to convert from front PTO to rear PTO mode. All controls on handles.|
|PTO Type||Independent, 990 RPM at max engine speed|
|Built-in heavy-duty quick-coupling system specific to this tractor model (implements must be equipped with matching quick-coupling components)|
|270 lbs. (330 lbs with optional front-weights mounted)|
NOTE: Wheel sizes / styles on most new tractors can be changed, if desired, for the “cost difference” in the wheels…ask an Earth Tools salesperson for details.
NOTE FOR HIGH-ELEVATION USE: For folks using these machines at elevations of more than 5000 feet, we offer special carburetor jets for Honda brand engines to make the engines operate correctly at high elevations. Ask a salesperson…
